TABLE OF CONTENTS
- Introoduction
- Add a Payment Plugin
- Add a Payment Plugin Configuration Set
- Edit a Payment Plugin Configuration Set
- Delete a Payment Plugin Configuration Set
Introoduction
The Znode 10 payment module supports the installation and configuration of native Znode payment options and of custom developed payment options.
The following payment plugins are natively supported by Znode 10:
- Charge on Delivery (COD)
- Purchase Order (PO)
- Invoice Me
- Spreedly (Credit Card Processing, ACH, etc.)
- Custom Developed Payment Plugin
Add a Payment Plugin
Navigate to: System Settings > Plugins > Available Plugins
The first step to adding a payment method is to install a payment plugin. Find the payment plugin that represents the payment option to be used in Znode and install the plugin.
Browse to the “Available Plugins” and filter by “Plugin Type” to locate the available payment module plugins. All available plugins will be listed in the grid. To filter the list to Znode native payment methods, use the “Plugin Type” filter value of “PaymentInternal” for COD, PO, and Invoice Me; and use the filter value of “Payment” for external gateway plugins.
If the desired payment plugin is already installed, continue on to adding a configuration set for the installed payment plugin.
Add a Payment Plugin Configuration Set

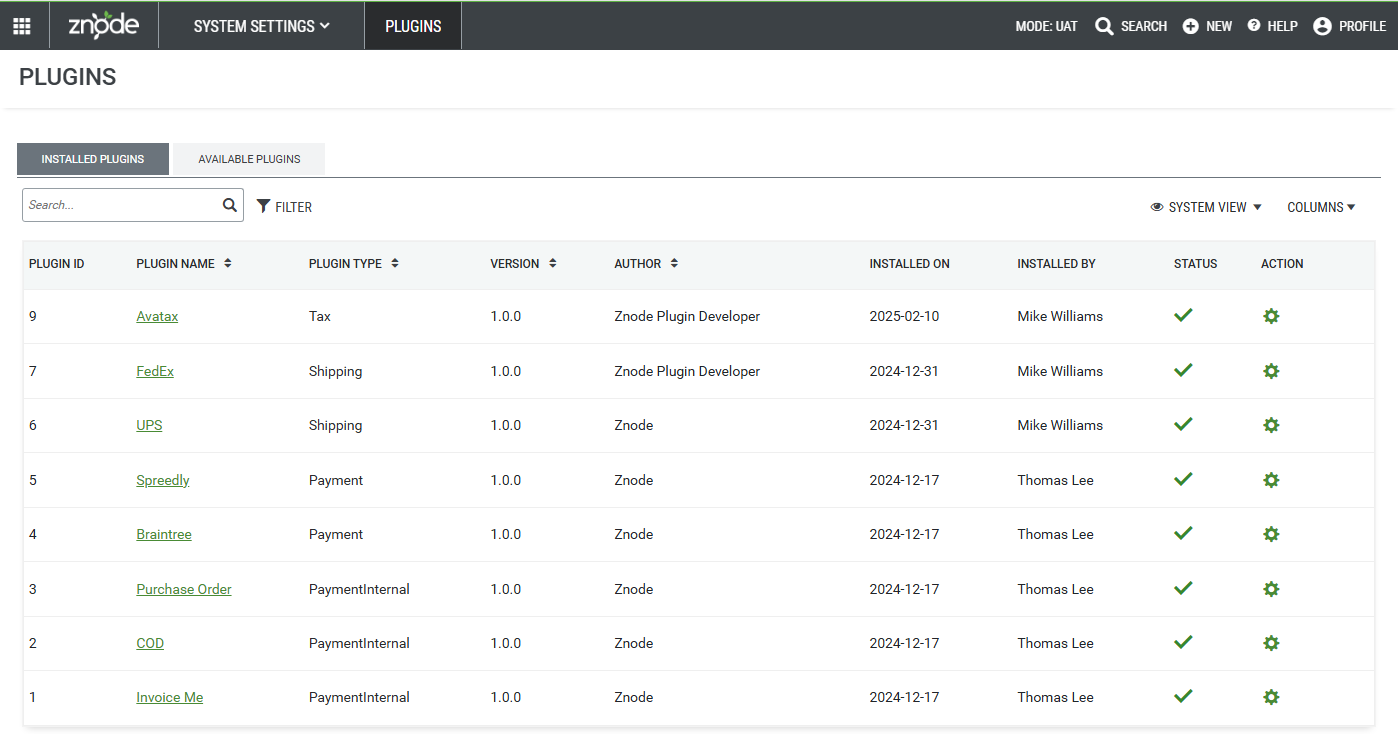

Navigate to: System Settings > Plugins > Installed Plugins
Once a payment plugin has been installed to the Znode system, it needs to be configured to process transactions. Select the payment plugin to be configured by clicking the Plugin Name link or selecting the gear icon under Action. Each plugin has a “Plugin Information” tab that describes the plugin that is installed.
Installed Plugin List Details
| Detail | Description |
| Plugin Name | Name of the installed plugin |
| Version | Version of the plugin that is installed |
| Details | Detailed description of the installed plugin |
| Author Name | Creator/Owner of the installed plugin |
| Pre Release | Identifies whether the plugin is in a pre release state, i.e. Beta |
| Activate | Activates the plugin for use |
Configuration Sets
Each plugin has a “Configuration Sets” tab. A configuration set is a collection of settings that define how an application behaves and operates. Essentially, each configuration is a variation of a plugin’s configurable settings. Unless otherwise noted, a plugin can have multiple configuration sets that can be applied to different entities in Znode.
For example, if a Customer prefers to offer ACH and Credit Card through Authorize.Net, the Spreedly plugin would be installed and two configuration sets would be created - one specific to ACH with Authorize.Net and the other specific to Credit Card with Authorize.Net. Then through configuration, one webstore can use the ACH payment method, a second webstore can use the credit card payment method, and yet a third webstore can use both ACH and credit card payment methods.
Each payment plugin configuration set is equivalent to a payment method offered on the webstore or for offline payments.
The data to be configured for each configuration set varies depending on the plugin. However, each of the payment plugins will have the below common configuration set fields.
Payment Plugin Configuration Set General Settings Details
| Detail | Description |
| Configuration Code | Add a unique code that differentiates configuration sets. Consider incorporating the gateway type. |
| Display Name | Add a name that will be displayed on the webstore for the payment method. |
| Display Order | Set the display order of the payment method. The sequence in which the payment methods are displayed on the webstore depends on this order. |
| Display Setting | Enable this option to display the payment method in the checkout flow on the webstore. |
| Gateway Type | Identifies the payment gateway being configured. Native Znode Charge on Delivery (COD), Purchase Order (PO), and Invoice Me payment methods will have this value preselected. |
Review the plugin-specific configuration guidance for plugin specific settings to be configured.
Edit a Payment Plugin Configuration Set
Navigate to: System Settings > Plugins > Installed Plugins
- Select the payment plugin to be edited by clicking the Plugin Name link or selecting the gear icon under Action.
- Find the Configuration Set in the grid that needs to be updated and select the “Edit” action.
- Edit the configuration values that are not read-only.
- Save the updates using the “Save” action. The page reloads with the updates.
- The configuration set is now updated.
Delete a Payment Plugin Configuration Set
Navigate to: System Settings > Plugins > Installed Plugins
- Select the payment plugin to be edited by clicking the Plugin Name link or selecting the gear icon under Action.
- Find the Configuration Set in the grid that needs to be deleted.
- Select the Configuration Set with the “Delete” action (i.e., trash can icon)
- The page reloads with the record deleted.
- The configuration set is now deleted.
