Page Builder - UI Widgets

TABLE OF CONTENTS

Text Component
Heading Component
Button Group
Text Image Widget
Dynamic Widget
Rich Text Widget
Recommended Usage
Guidelines & Best Practices

Text Component

Drag and drop the “Text” component onto the page.
Configure the following:
- Text content.
- Size: Small or Medium.
  - Defines the visual scale of the content.
- Text weight : Normal , Bold , Semibold, Extrabold
  - Controls how bold or prominent the text appears.
- Alignment: Left, Center, or Right.
  - Determines how text is positioned within the component.
- Color: Default or Muted.
  - Controls visibility and emphasis.
- Padding: Top, Right, Bottom, left
  - Adjust padding values to create space inside the component.
  - Defines spacing inside the component.

Heading Component

Drag and drop the “Heading” component onto the page.
Configure the following:
- Heading text
  - Defines the main title displayed in the component.
- Optional ID for linking within the page.
  - Used to create anchor links within a page.
- Size: Triple Extra Large to Extra Small.
  - Determines visual scale of the heading.
- HTML Heading Level: H1–H6.
  - Controls semantic structure and SEO importance.
- Alignment: Left, Center, or Right.
  - Controls horizontal placement.
- Background color and text color.
  - Defines visual contrast.
    - Background Color: Behind the heading
    - Text Color: Heading font color
- Border settings
  - Border Sides : Top, Right, Bottom, left, All sides
    - Choose where borders appear
    - Multiselection option
  - Width
    - Defines thickness (e.g., 1px, 2px)
  - Color
    - Sets border color
  - Border Radius
    - Controls corner rounding (e.g., 4px, 8px)
  - Style : Solid , Dotted or Dashed
- Margin: Top, Right, Bottom,
  - Defines space outside the component.
- Padding: Top, Right, Bottom, left
  - Adjust padding values to create space inside the component.
  - Defines spacing inside the component.

Button Group

Drag and drop the “Button Group” component onto the page.
Configure the following:
- Alignment of the button group: Left, Center, or Right.
  - Controls the horizontal alignment of all buttons within the group.
- Direction: Horizontal or Vertical
  - Defines how multiple buttons are arranged.
- Padding: Top, Right, Bottom, left
  - Adjust padding values to create space inside the component
  - Defines spacing inside the component.
- Margin: Top, Right, Bottom,
  - Defines space outside the component.
- Button
  - Label
    - Defines the text displayed on the button.
  - Href (full URL or anchor reference using “#”).
    - Specifies where the button redirects.
  - Target behavior: same tab or new tab.
    - Controls how the link opens.
  - Style variant: Primary or Secondary.
    - Defines button appearance and emphasis.
  - Add additional buttons as needed within the same group.
    - Allows adding several buttons within the same button group.

Drag and drop the “Text Image” widget onto the page.
Configure the following:
- Padding (px)
  - Defines the internal spacing within a component
- Margin (px)
  - Defines the external spacing around a component
- Heading
  - Represents the primary title
- Description text
  - Provides detailed or supporting information below the heading.
- Button
  - Label
    - Defines the text displayed on the button.
  - Href (full URL or anchor reference using “#”).
    - Specifies where the button redirects.
  - Target behavior: same tab or new tab.
    - Controls how the link opens.
  - Style variant: Primary or Secondary.
    - Defines button appearance and emphasis.
- Layout order: text first or image first.
  - Controls the placement of text and image within the component.
- Image ratio : Small or Large
  - Defines the relative size of the image.
- Image selection from DAM.

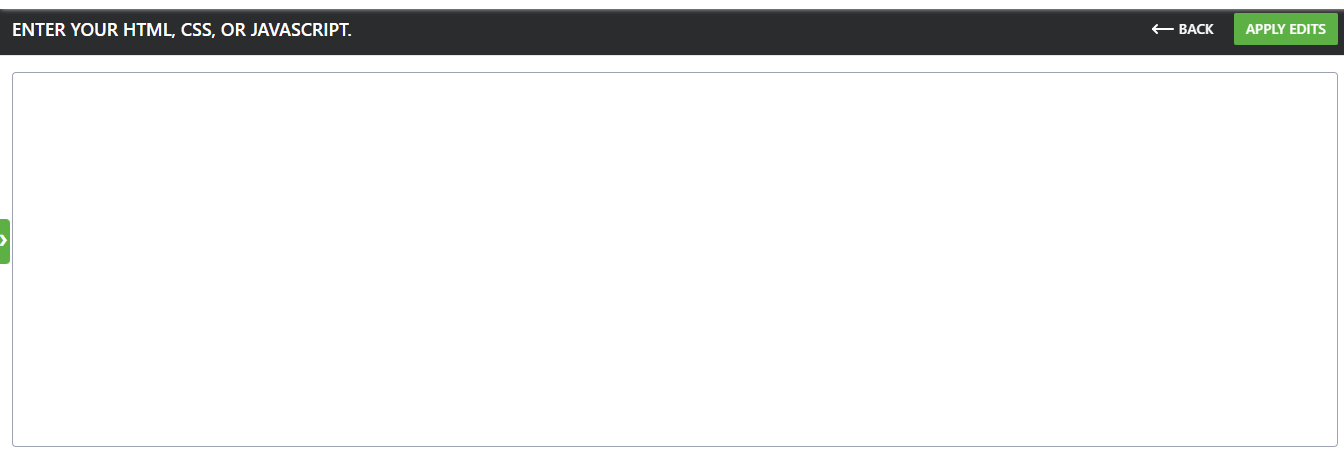

Drag and drop the “Dynamic” widget onto the page.
Insert HTML, CSS JavaScript code provided by third-party services to embed additional functionality.

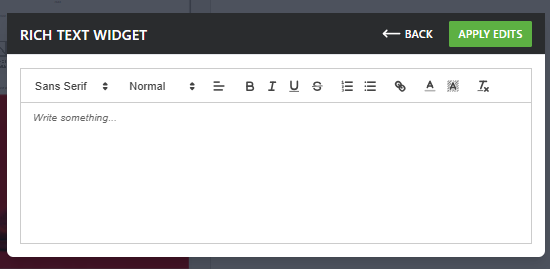

Drag and drop the “Rich Text” widget onto the page.
Select the “Open Rich Text Widget” button to launch the WYSIWYG editor.
- Users can create lists and add hyperlinks without HTML, while still having the flexibility to write or paste HTML, CSS, and JavaScript when needed.

Recommended Usage

Recommended Limit: 25–30 widgets per page
Soft Limit: Up to 35 widgets per page

These limits are designed to ensure optimal frontend performance, smooth rendering, and a consistent user experience.

Guidelines & Best Practices

1. Optimize JavaScript Usage

Minimize custom JavaScript per widget.
Avoid:
- Large inline scripts
- Repetitive or redundant logic
Prefer reusable scripts and modular JS design.

2. Avoid Heavy Dependencies

Do not use heavy third-party libraries unless necessary.
If required:
- Prefer lightweight alternatives
- Load libraries conditionally (only when needed)

3. Control DOM Size

Keep the total number of DOM nodes within reasonable limits.
Avoid:
- Deep nesting of HTML elements
- Excessive wrapper/div layers within widgets
Design widgets with simplified markup.

4. Limit Animations & Effects

Avoid excessive CSS/JS animations across multiple widgets.
Prefer:
- Subtle transitions
- Hardware-accelerated animations (e.g., transform, opacity)
Disable unnecessary animations on lower devices where possible.

5. Ensure Efficient Rendering

Optimize CSS to reduce layout shifts and repaint costs.
Avoid:
- Frequent DOM manipulations
- Forced synchronous layouts (e.g., layout thrashing)

6. Maintain Page Load Performance

Ensure widgets do not degrade initial page load performance.
Recommended practices:
- Defer non-critical scripts
- Use lazy loading for non-visible sections (where applicable)

7. Reusability & Consistency

Reuse widget structures instead of duplicating logic.
Maintain consistent styling and structure across widgets to reduce CSS complexity.
