Configuring Store URLs

TABLE OF CONTENTS

Navigate to: Store and Reps > Store > Manage > URLs

Administrators can manage the URL(s) associated with the store through the URLS tab.

Each Store must be associated with a URL, activated under the “Tools” menu, and Published before it is available to the public.

Associating a URL with Store

Navigate to: Stores and Reps > Manage > Store > URLs

The store needs a domain before the customer can access the particular store.

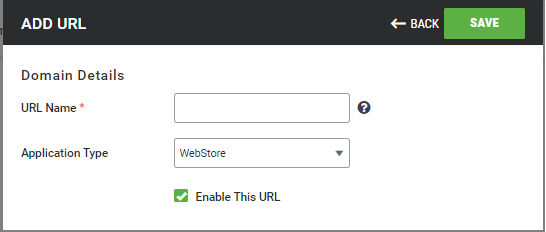

  • Use the "Add New" button and complete the following details
    URL NameThe unique domain name for the store, ex. http://www.znode.com/
    ApplicationDefine the type of store you're creating as API, Admin, or Webstore.
    "Enable this URL" boxCheckbox to enable URL
  • Save progress using the "Save" button. The page reloads with action confirmation and redirects to the URL Landing Page.

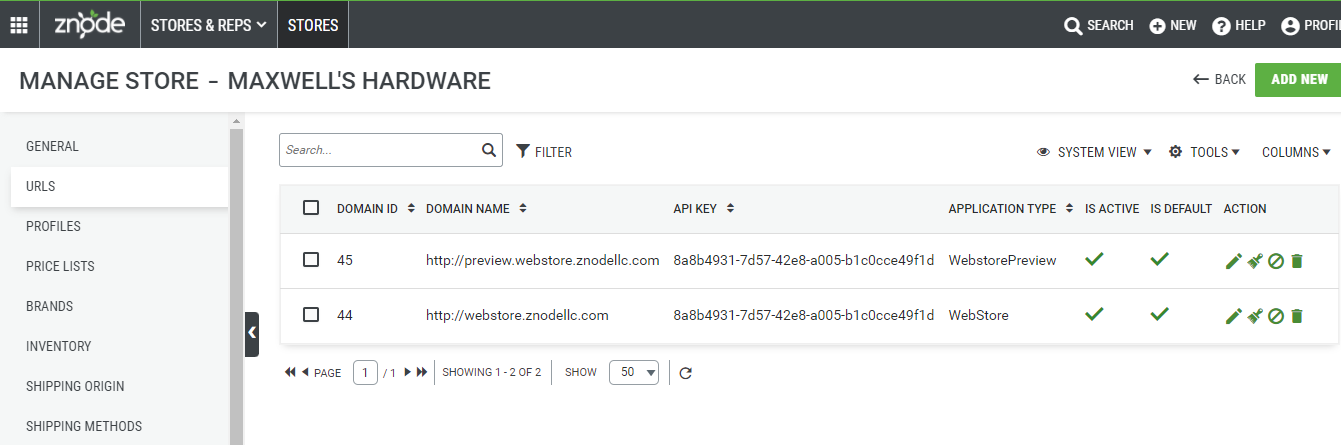

  • (Optional) Administrators can now use Actions to manage URLs from the URL Landing Page, seen below.
  • URL has been successfully added
    "Edit" actionEdit URL Name & change Application Type
    "Clear Cache" actionClears cache for the entire application.
    Enable/DisableEnable or Disable a URL for a specified Store
    Delete" actionDelete a domain


Configuring Store URL in Kubernetes

When migrating from IIS to Kubernetes with an Ingress Controller, store URLs must be configured at two levels:

Ingress resource (URL routing, redirects, SSL/TLS termination)

Database (dbo.ZnodeDomain) (so the store recognizes the bound domain)

  • Simple URL Mapping (http / https without www)

    This setup binds the store directly to the bare domain (abc.com) and serves traffic over HTTP or HTTPS.

    Ingress Example
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: webstore-ingress
spec:
tls:
- hosts:
- abc.com
secretName: webstore-tls
rules:
- host: abc.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: webstore-service
port:
number: 80

If SSL is enabled, → URL will be https://abc.com

If SSL is disabled, → URL will be http://abc.com

  • URL with www Prefix

    This setup enforces or serves the store on the www subdomain (www.abc.com).

    Ingress Example (with redirect from non-www → www)
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: webstore-ingress
annotations:
nginx.ingress.kubernetes.io/from-to-www-redirect: "true"
spec:
tls:
- hosts:
- www.abc.com
- abc.com
secretName: webstore-tls
rules:
- host: www.abc.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: webstore-service
port:
number: 80


All requests to abc.com will automatically redirect to www.abc.com.
