Configuring Data Exchanges

TABLE OF CONTENTS

Data Exchange Base Definition Details
Data Exchange Scheduler Configuration Details
Data Exchange Source Configuration Details
Data Exchange Destination Configuration Details
- Znode Import Transmission Mode
Data Exchange Mapping Configuration Details
Notification Configuration

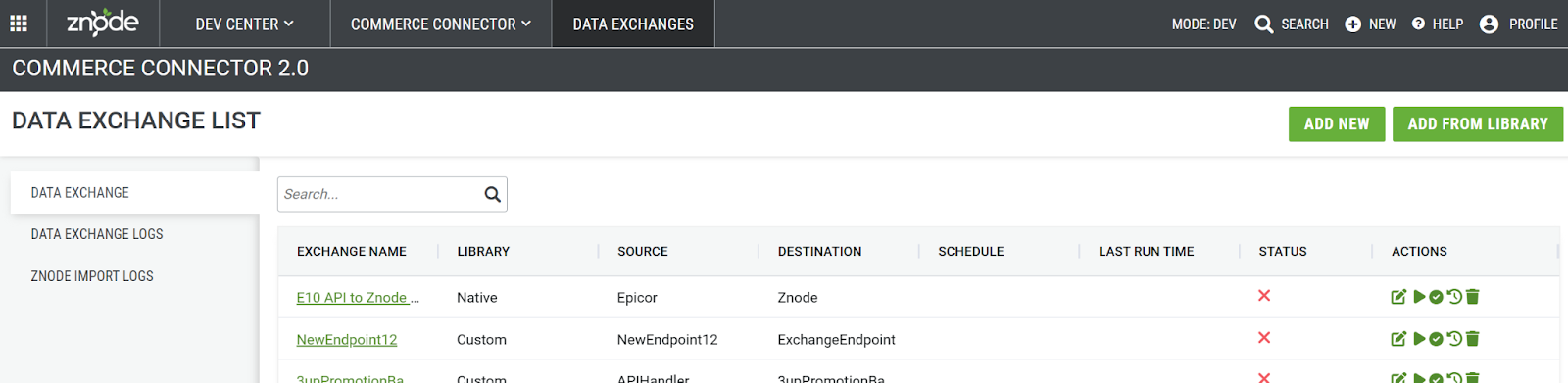

Navigate to: Dev Center > Commerce Connector > Data Exchanges

Select the data exchange to be configured and click the Edit icon under Actions.

The data exchange has two tabs in the left-hand navigation - Configuration Set and Configuration Change History - with Configuration Set being the default landing location. The term “configuration set” is used throughout Znode 10 to reference a configured set of related settings. In this scenario, the configuration set defines the components of a data exchange.

A data exchange has multiple sections to configure before it will run successfully. The sections a data exchange requires to be configured will adjust based on some configuration selections.

Detail	Description
Base Definition	Contains identifying information for the data exchange.
Scheduler Configuration	Configures the schedule the data exchange should run.
Source Configuration	Configures where the data is originating from.
Destination Configuration	Configures where the data is delivered to.
Mapping	Configures the field mapping from the source data format to the destination data format.

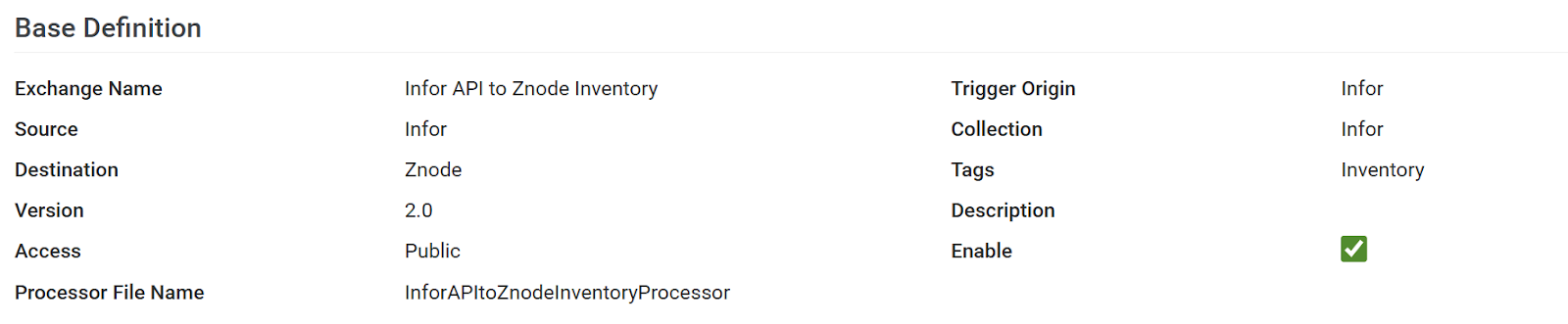

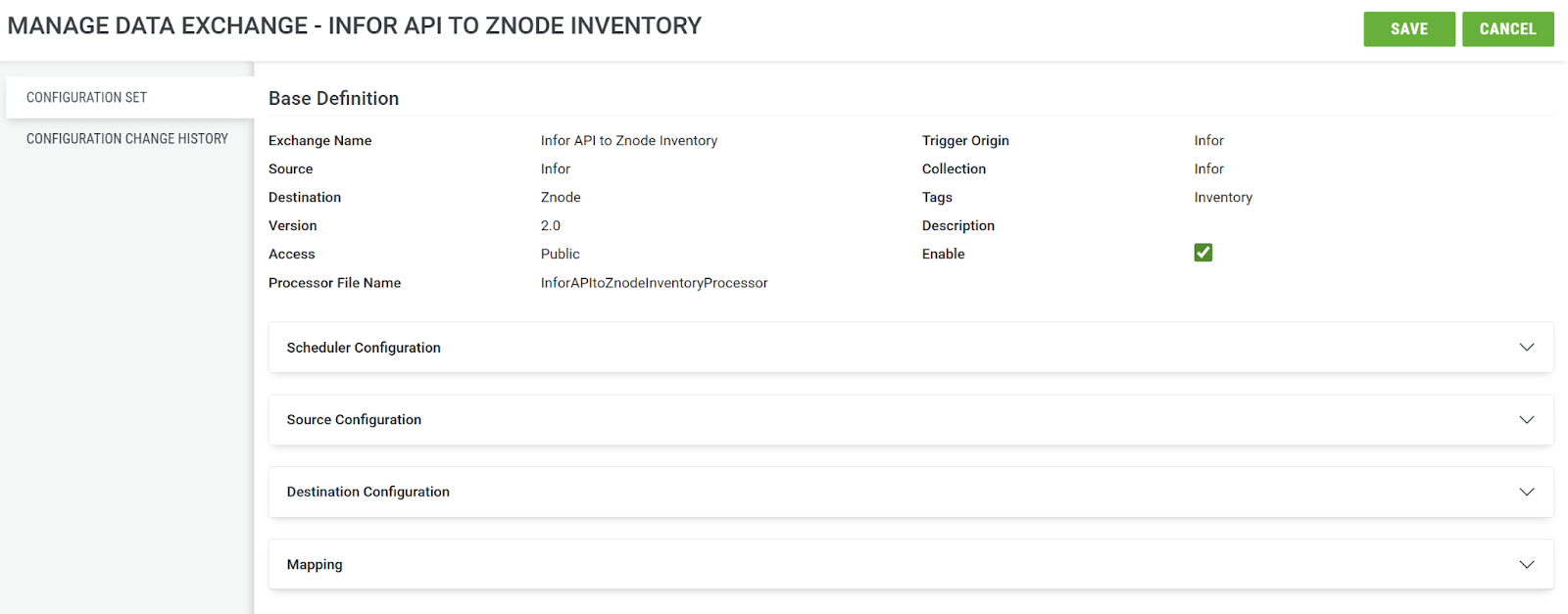

Data Exchange Base Definition Details

Navigate to: Dev Center > Commerce Connector > Data Exchanges > Selected Data Exchange > Configuration Set > Base Definition

Detail	Description
Exchange Name	A unique name to identify the data exchange. This value cannot be edited once created.
Source	Identifies where the data in the data exchange is coming from, i.e. sender of the data.
Destination	Identifies where the data in the data exchange is headed to, i.e. recipient of the data.
Version	Version number of the data exchange.
Access	Private - Data exchange is meant for use by the customer’s Znode environment it is configured in. Public - Data exchange is meant for any Znode environment to access, not constrained to the authoring customer. Workflow for the private-custom and public-native are completed. Workflow for the public-custom and private-native are pending.
Processor File Name	The file name of the custom developed, compiled, and deployed data exchange processor.
Trigger Origin	Identifies what system has the responsibility to initiate the data exchange.
Collection	Identifies to what group the data exchanges belongs to, e.g. Infor CSD, SAP, etc.
Tags	Tags that identify the data exchange.
Description	Detailed description of the data exchange. A quality description aids in understanding the data exchange without having to review the full configuration.
Enable	Enables and disables the data exchange. Checked indicates the data exchange is enabled; unchecked is disabled.

Data Exchange Scheduler Configuration Details

Navigate to: Dev Center > Commerce Connector > Data Exchanges > Selected Data Exchange > Configuration Set > Scheduler Configuration

The Scheduler Configuration controls the schedule on which the data exchange is run. The fields that require configuration change based on the “Scheduler Type” selected.

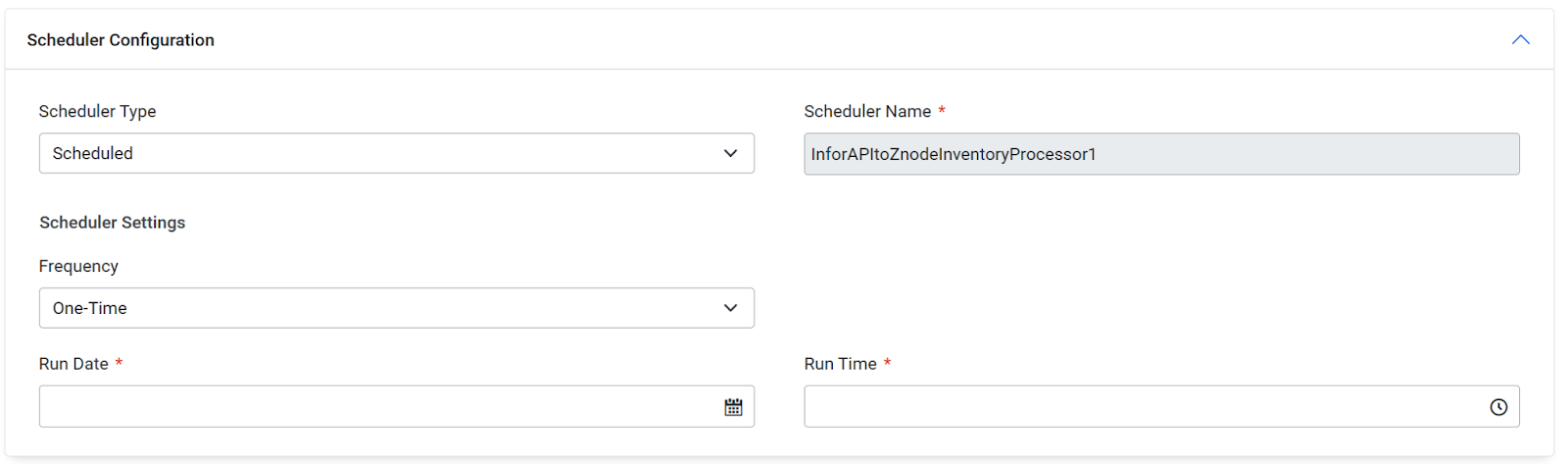

Scheduled Scheduler Type

The “Scheduled” scheduler type is intended for the use cases that require a data exchange to run automatically.

Detail	Description
Scheduler Type	Scheduled
Scheduler Name	An identifying name for the scheduler with respect to the data exchange name.
Frequency	One-Time - Defines a schedule that runs a data exchange one time. Recurring - Defines a schedule that runs a data exchange more than one time. The data exchange may be scheduled to run multiple times a day or to run on specific days and months, etc.
Run Date	First date the data exchange should run.
Run Time	Time (on the run date) the data exchange should run.
Cron Expression	The Cron Expression defines the schedule on which a recurring data exchange is run. A user-friendly list of Cron expressions is available under Commonly Used Cron Expressions. Administrators can copy any Cron expression and add it into the Cron Expression field.

On-Demand Scheduler Type

The “On-Demand” scheduler type is intended for the use cases that require a data exchange configuration be saved but does not run automatically. The data exchange may be one that has been configured and a schedule is waiting to be determined or may be one that will always be manually run.

Detail	Description
Scheduler Type	On-Demand
Scheduler Name	An identifying name for the scheduler with respect to the data exchange name.

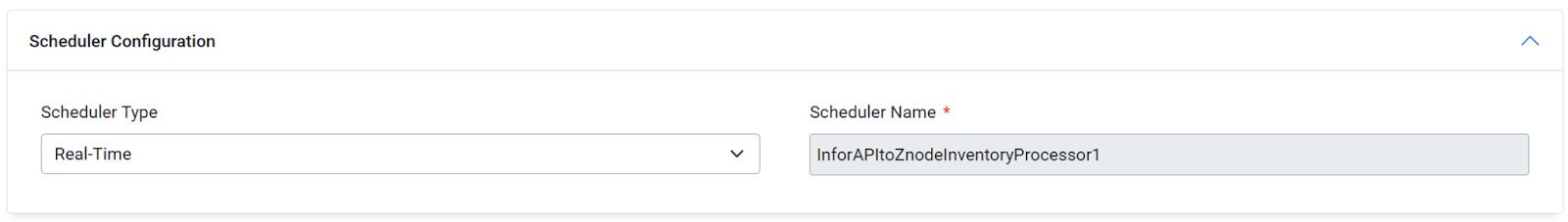

Real-Time Scheduler Type

The “Real-Time” scheduler type is intended for the use cases that require immediate request and response processing.

Detail	Description
Scheduler Type	Real-Time
Scheduler Name	An identifying name for the scheduler with respect to the data exchange name.

Data Exchange Source Configuration Details

Navigate to: Dev Center > Commerce Connector > Data Exchanges > Selected Data Exchange > Configuration Set > Source Configuration

The Source Configuration identifies where the data originates. The fields that require configuration change based on the “Transmission Mode” selected.

The “Test Connectivity” action is available regardless of the transmission mode selected. After all credentials have been added, a user may test the connectivity to the configured server using the configuration details. A confirmation message will be displayed with the results of the test.

API Transmission Mode

When API “Transmission Mode” is selected, the fields require configuration changes based on the “Authentication Type” selected.

Configuration fields that are the same, regardless of the Authentication Type selection, are described in the following table.

Detail	Description
Transmission Mode	API
API Action	API action to use when calling the endpoint. Options: GET, POST, PUT, DELETE, PATCH
Endpoint	Address of the endpoint from which to retrieve the source data.
Authentication Type	Type of authentication to use when calling the endpoint. Options: Basic, OAuth 2.0, Bearer
Format	Identifies the expected format of the destination file. Options: CSV, JSON, XML.

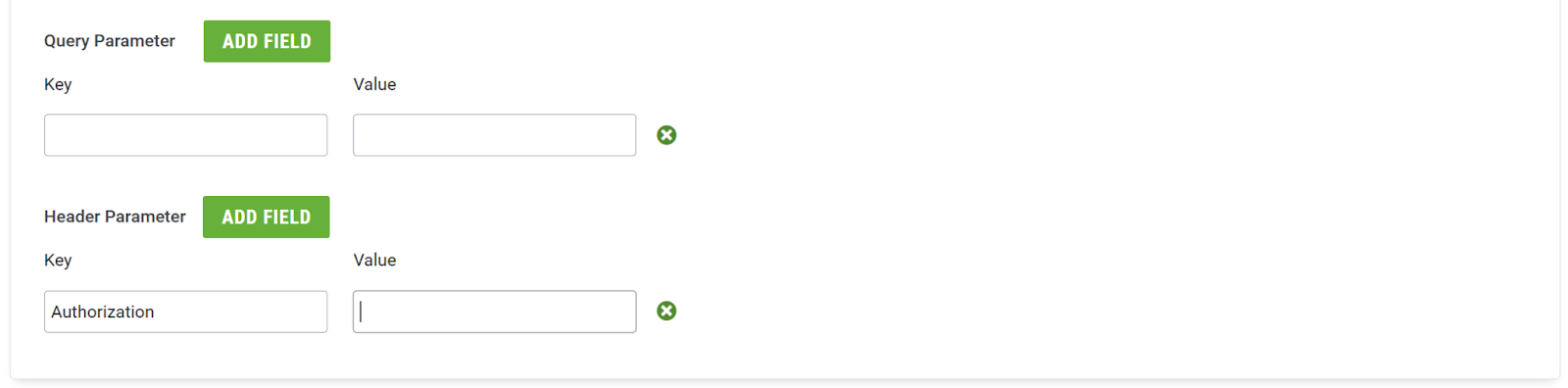

Query Parameter	Key-Value pairs appended to the end of an API endpoint URL to filter, sort, or modify the data returned by the server. They follow a ? character in the URL.
Header Parameter	Key-Value pairs that provide metadata such as authentication tokens, content type, or client information. They help the server understand how to process a request or verify the client’s identity.

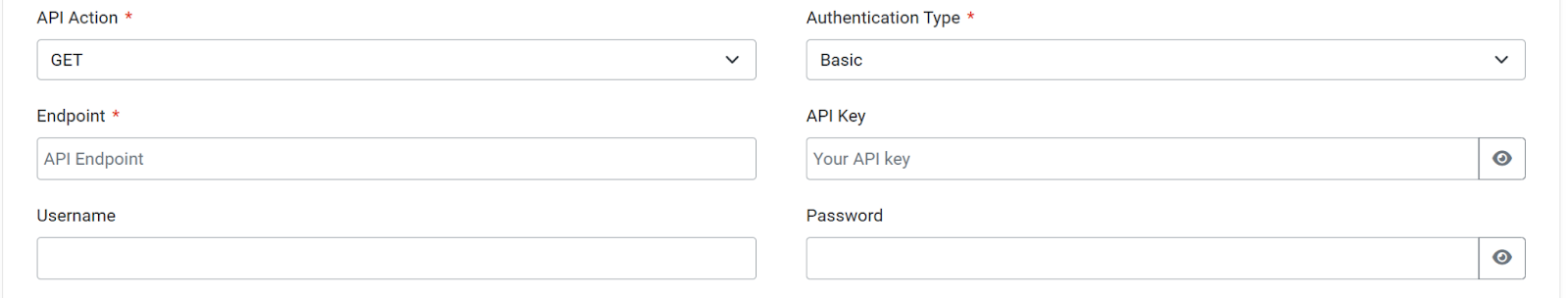

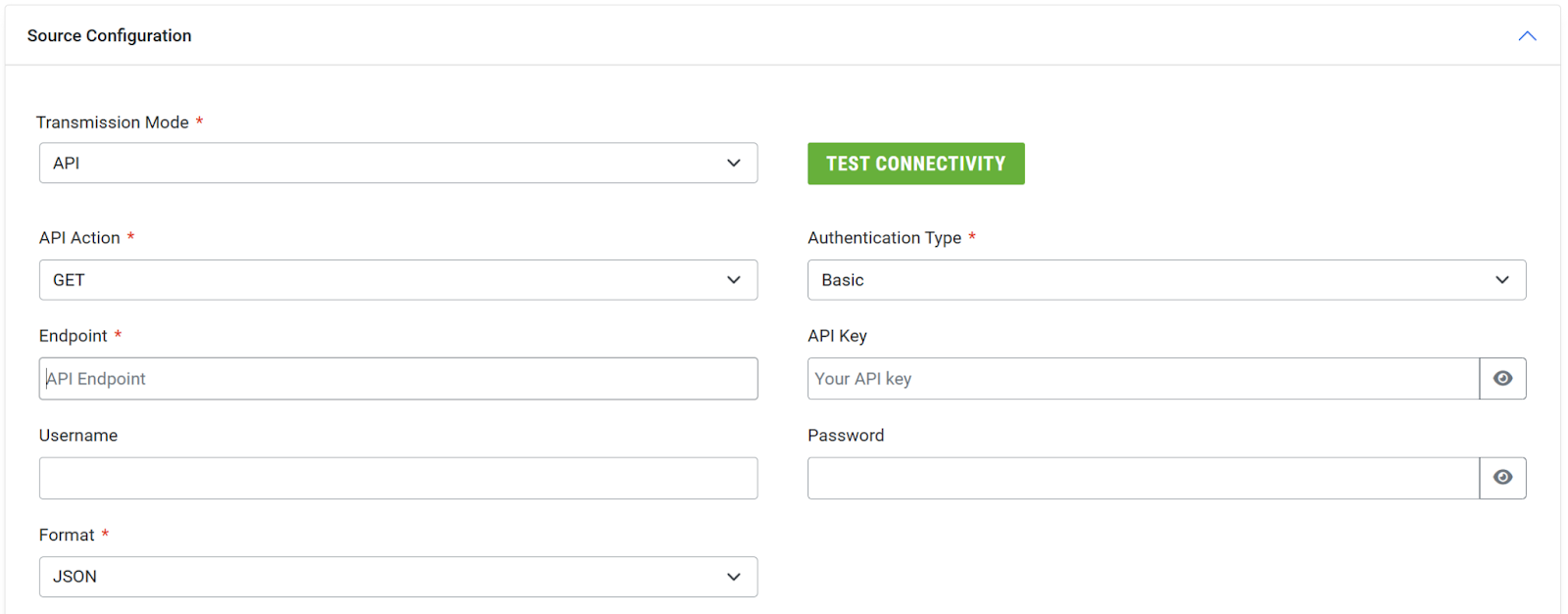

Basic Authentication Type

The “Basic Authentication” authentication type is a simple authentication method where Znode sends a username and password encoded in Base64 with each API request. These credentials are included in the Authorization header, allowing the server to verify the user’s identity. HTTPS is used to ensure credentials are securely transmitted.

In Basic Authentication, the Authorization header is formatted as:

Authorization: Basic <base64(username:password)>

Configuration fields specific to the Basic Authentication Type selection are described in the following table.

Detail	Description
Authentication Type	Basic
API Key	Supported as an alternative authentication value for the Basic authentication type. Not typically used in Basic Authentication, however.
Username	Unique identifier used to authenticate the client making the API request; combined with the password and encoded in Base64 for transmission in the Authorization header.
Password	Secret associated with the username, used to verify the client’s identity; included with the username in the Authorization header as part of the Base64-encoded credentials.

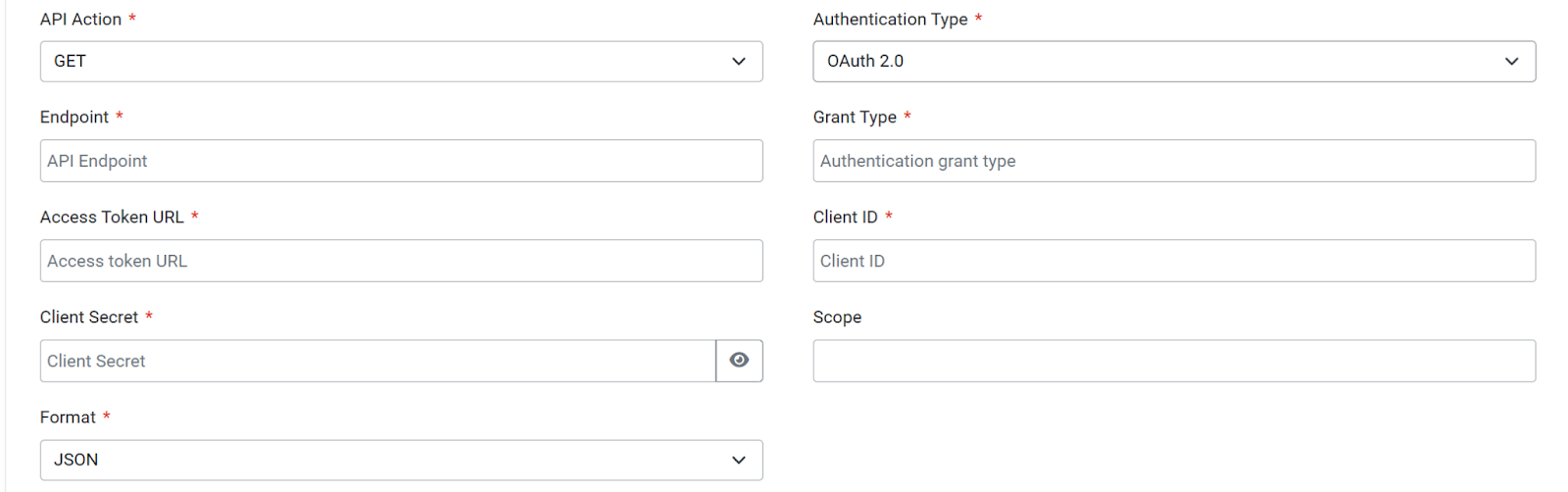

OAuth 2.0 Authentication Type

The “OAuth 2.0” authentication type is a secure and flexible authorization framework that allows Znode to access resources by exposing the login credentials. It uses access tokens, obtained through an authorization flow, to grant limited access to protected APIs on behalf of Znode.

Configuration fields specific to the OAuth 2.0 Authentication Type selection are described in the following table.

Detail	Description
Authentication Type	OAuth 2.0
Grant Type	Specifies the method by which an access token is obtained. Each grant type defines a different flow. Examples: client_credentials, password.
Access Token URL	Endpoint URL where Znode sends its authentication request to obtain an access token.
Client ID	(Public) Identifier assigned to the Znode by the authorization server; used to identify Znode as the client making the request.
Client Secret	(Confidential) value known only to Znode and the authorization server; used to authenticate Znode along with the Client ID when requesting tokens.
Scope	Defines the level of access requested by Znode, specifying which resources or actions the token should allow.

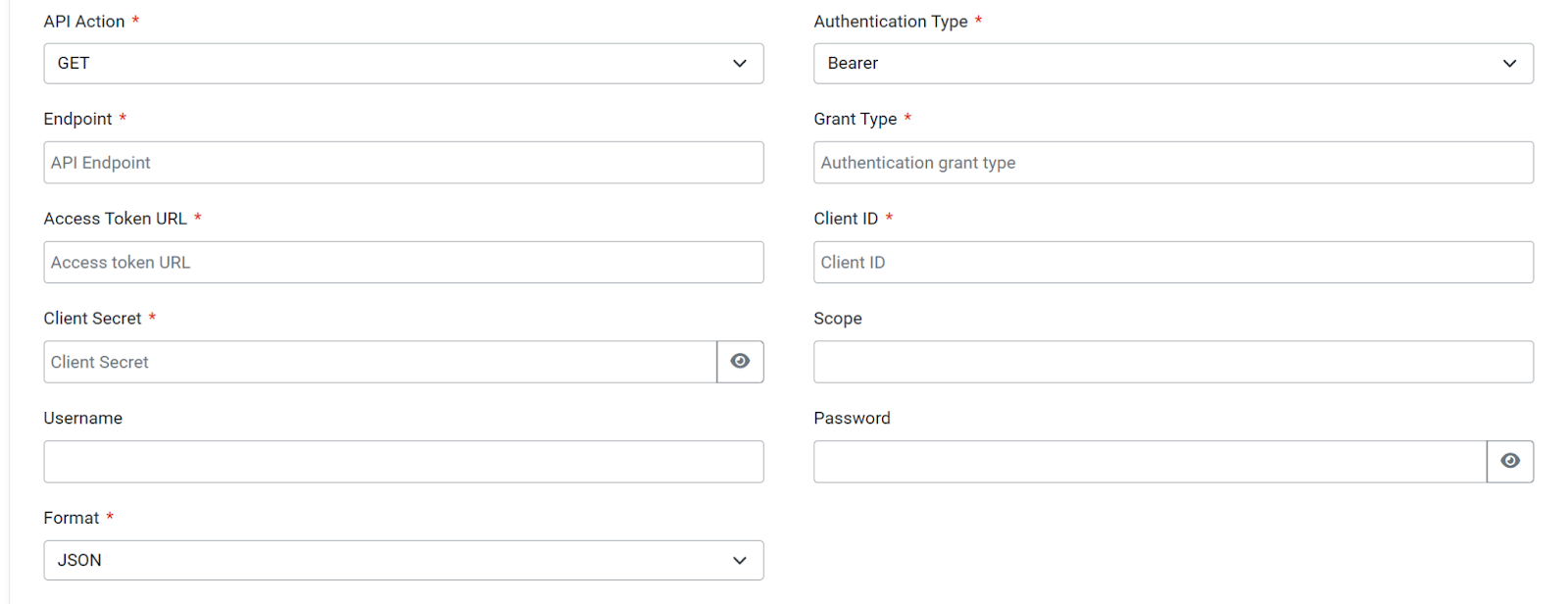

Bearer Authentication Type

The “Bearer” authentication type is a token-based authentication method where Znode includes an access token in the Authorization header of each API request. The token, typically issued by an authorization server, grants access to protected resources without requiring a username or password in the request.

The format of the Authorization header is:

Authorization: Bearer <token>

Configuration fields specific to the Bearer Authentication Type selection (particularly the password or client_credentials grant types) are described in the following table.

Detail	Description
Authentication Type	Bearer
Grant Type	Defines how Znode obtains the bearer token, such as password (for the username/password flow) or client_credentials (for machine-to-machine access). The grant type determines which fields are required in the request.
Access Token URL	Endpoint provided by the authorization server where Znode sends a request to obtain a bearer token.
Client ID	Identifier assigned to Znode by the authorization server; used to identify Znode as the application requesting access.
Client Secret	Confidential key issues to Znode, used in conjunction with the Client ID to authenticate Znode with the authorization server.
Scope	A space-delimited list that defines what resources or permissions the token should grant access to; helps limit access based on what Znode needs access to.
Username	(Only used with the password grant type) End user’s login name; included in the API request when Znode is acting on behalf of a specific user in the source system.
Password	(Only used with the password grant type) End user’s password, submitted securely with the username to obtain a token for user-level access.

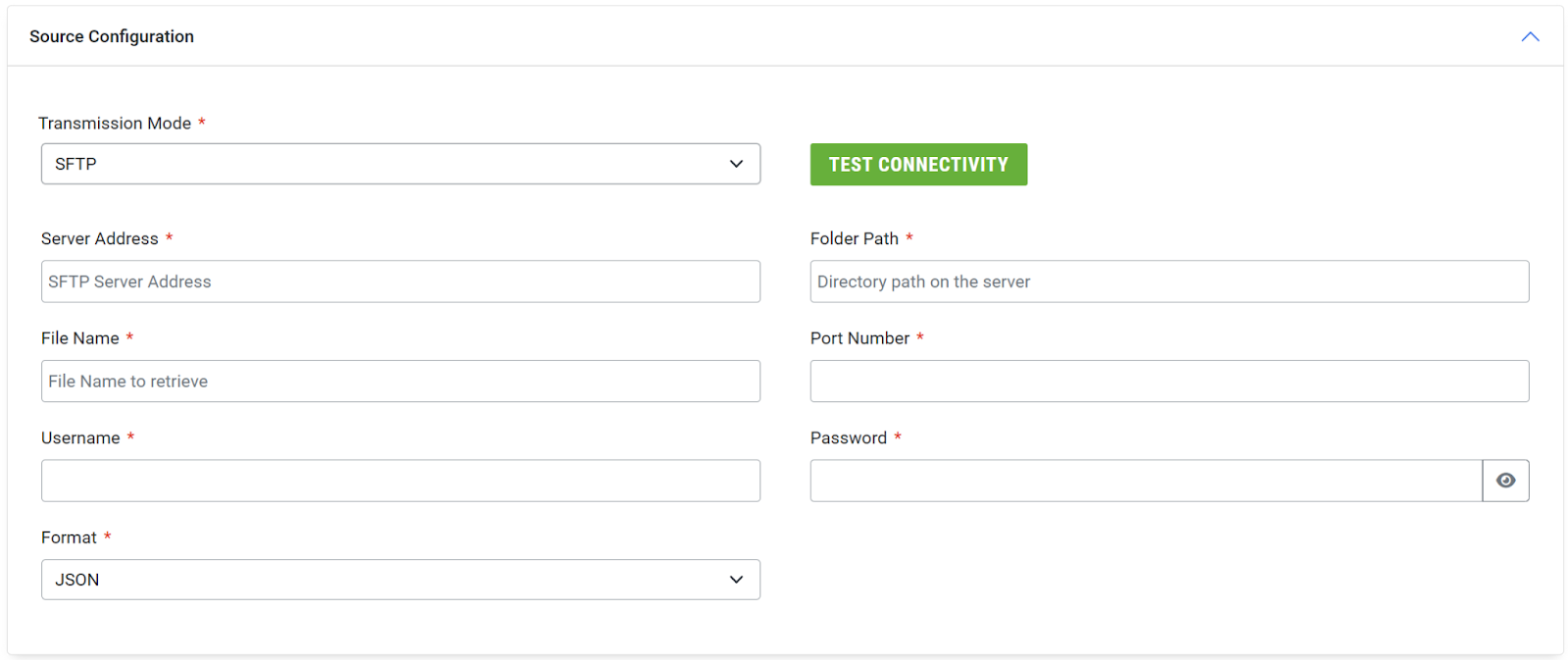

SFTP Transmission Mode

Detail	Description
Transmission Mode	SFTP
Server Address	Identifies the address of the SFTP server from which the source data will be retrieved.
Folder Path	Identifies the folder path on the SFTP server in which the source data will be found.
File Name	Identifies the name of the file containing the source data.
Port Number	Identifies the port number on which the SFTP request will be made.
Username	User credential for accessing the SFTP server to retrieve the file.
Password	Password credential for accessing the SFTP server to retrieve the file.
Format	Identifies the expected format of the source file. Options: CSV, JSON, XML.

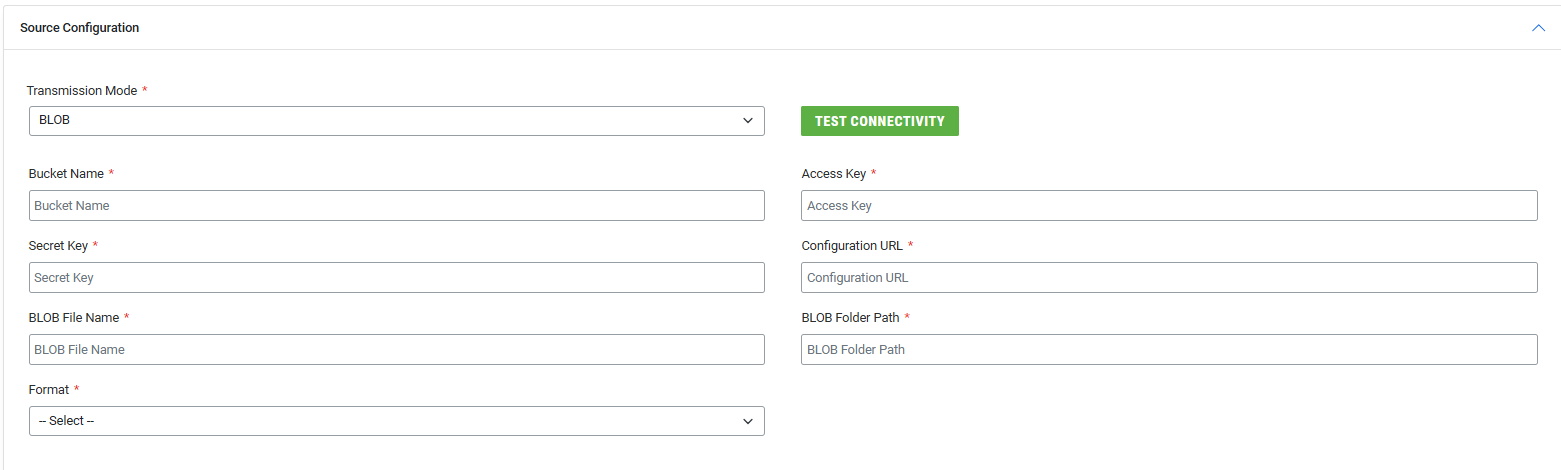

BLOB Transmission Mode

Detail	Description
Transmission Mode	BLOB
Bucket Name	The name of the BLOB container or the display name.
Access Key	The secret key, also called the storage account key, is used to authenticate and authorize access to the Azure storage account.
Secret Key	The private key that authenticates and authorizes access to the Azure account storage.
Configuration URL	Endpoint URL or connection URL used to access the storage account or a specific container.
BLOB File Name	Identifies the name of the file containing the source data.
BLOB Folder Path	The virtual directory structure inside the BLOB container where the file is stored.
Format	Identifies the expected format of the source file. Options: CSV, JSON, XML.

Data Exchange Destination Configuration Details

Navigate to: Dev Center > Commerce Connector > Data Exchanges > Selected Data Exchange > Configuration Set > Destination Configuration

The Destination Configuration details section is a duplicate of the Source Configuration. Please reference the Source Configuration details for guidance.

Note, when “Real-Time” is selected as the schedule type, the Destination Configuration section will not be visible. In this instance, the destination is the same as the source. In other words, the output from the source data configuration is sent back to the event/system that requested the source data configuration be triggered to run.

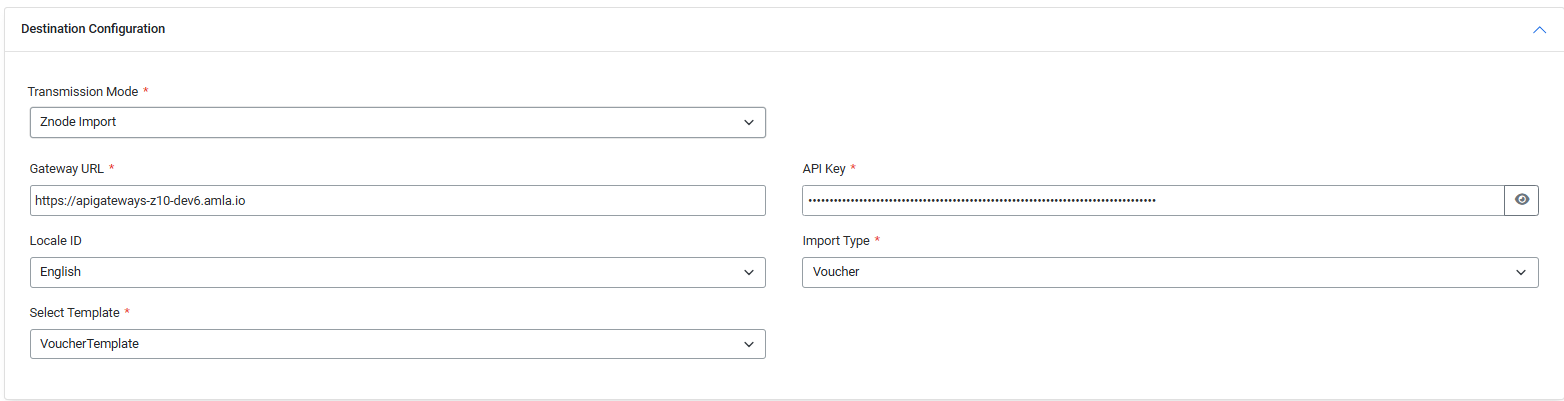

Znode Import Transmission Mode

The Destination Configuration section includes all the functionalities of the Source Configuration section, with an additional feature specifically designed for Znode Imports. This feature simplifies the configuration process when Znode is selected as the destination.

In this setup, the Gateway URL and API Key are automatically prefilled based on the selected environment. The Locale ID can be modified using a drop-down menu populated from the admin locale list.

Users must then select the Import Type, which determines the kind of data to be imported into Znode. Depending on the selected import type, additional drop-downs for Family List, Store, Catalog, Discount Type, and Templates become available, as per Znode’s import processing requirements. Additional information related to import templates can be found in <insert link to existing import template article>.

Additionally, the YAML mapping for destination columns is automatically pre-filled according to the chosen import type. However, users are required to update the source column mappings accordingly.

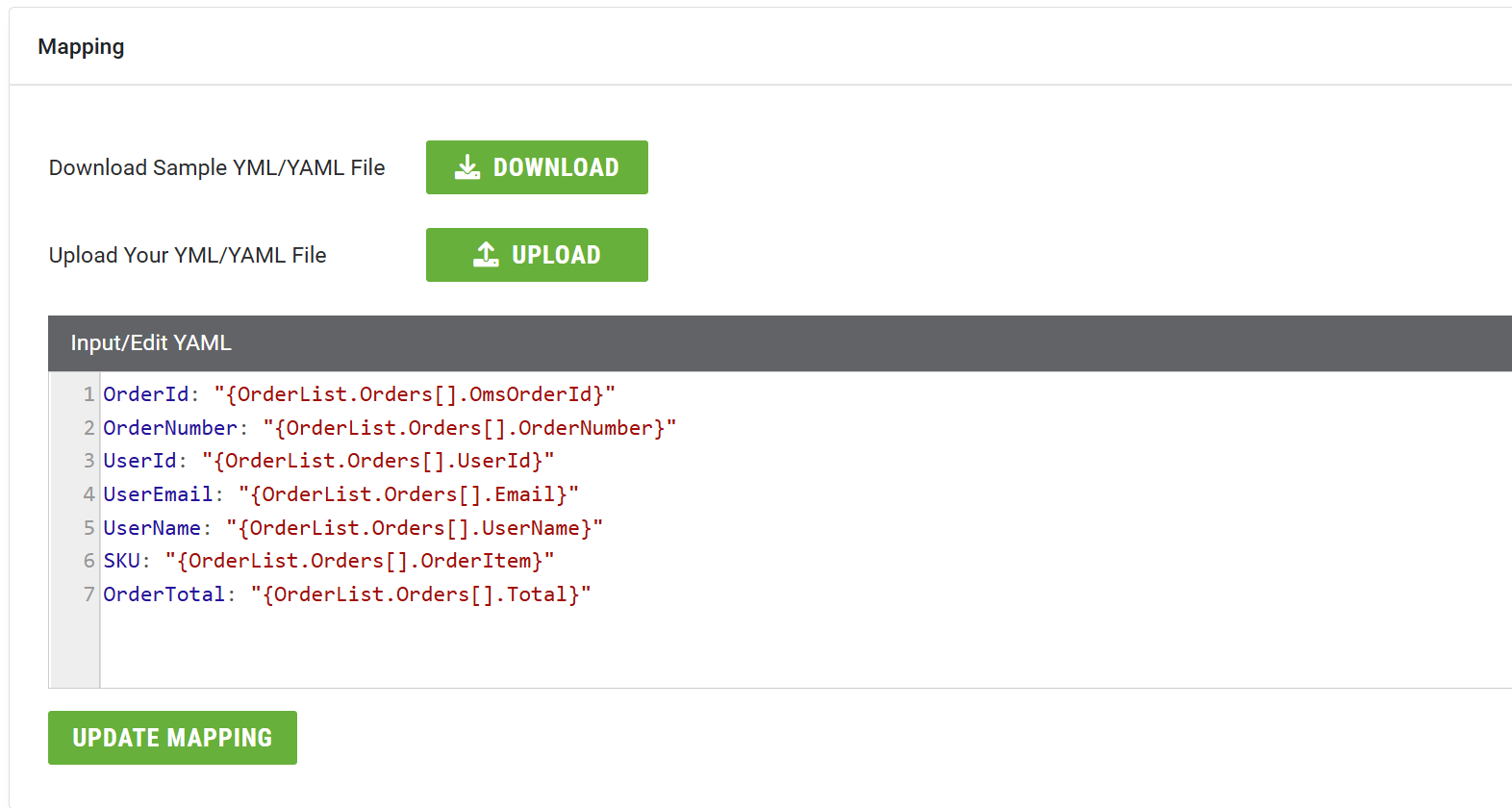

Data Exchange Mapping Configuration Details

Navigate to: Dev Center > Commerce Connector > Data Exchanges > Selected Data Exchange > Configuration Set > Mapping

The “Mapping” configuration supports simple source data field mapping to destination field mapping. The mapping is stored as a YML/YAML file. When first adding a data exchange to a Znode environment, a native library data exchange will have the Input/Edit YAML dialog populated with the native mapping; a custom library exchange will have an empty Input/Edit YAML dialog.

A user may edit the Input/Edit YAML dialog directly and select the “Update Mapping” action to save the mapping changes. Else, the Znode admin tooling provides the ability to “Download” a sample YML/YAML file to assist in creating a custom mapping YML/YAML file.

An external YML/YAML file may be built and uploaded using the “Upload” action. Once the upload has completed, the contents will appear in the “Input/Edit YAML” dialog. Be sure to select “Update Mapping” to save any changes made to the Input/Edit YAML dialog.

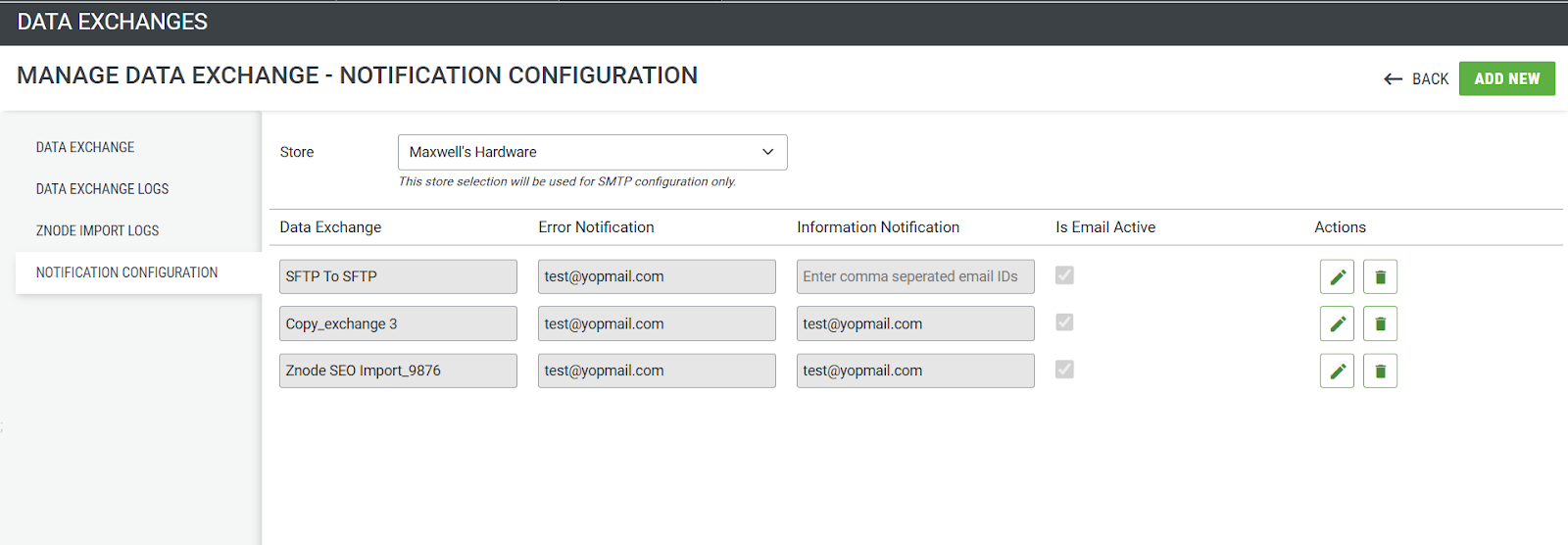

Notification Configuration

Navigate to: Dev Center > Commerce Connector > Data Exchanges > Notification Configuration

The notification configuration allows you to set up email recipients for data exchange notifications.

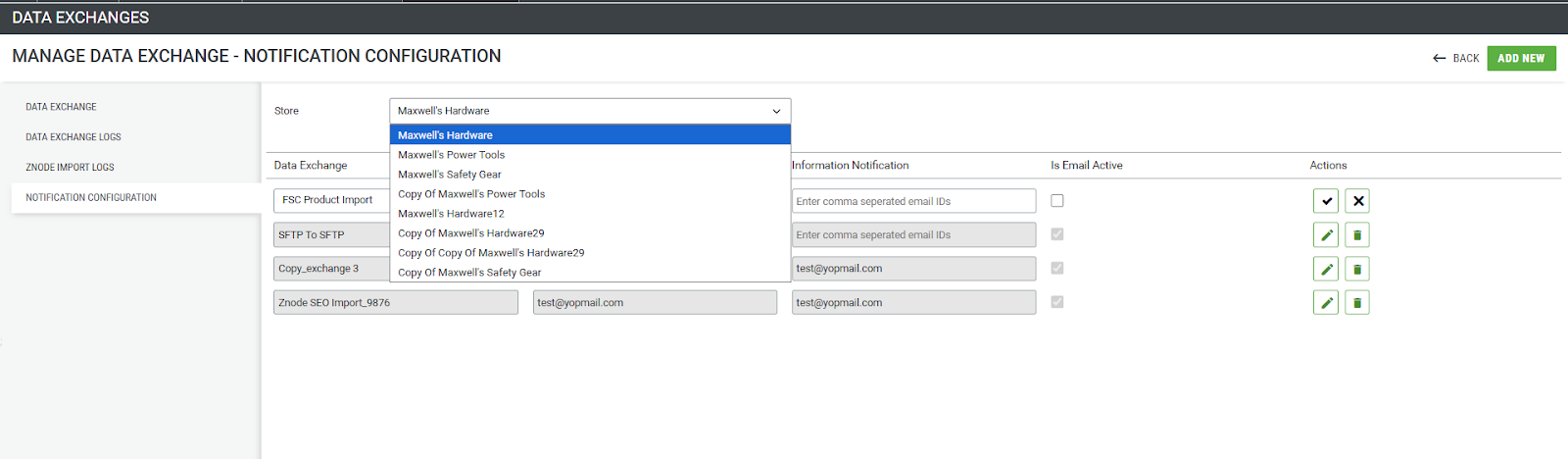

On this page user will select the store from the dropdown. Here, the already created stores in the admin would appear. The store selected here would be critical since SMTP settings would be used from that store.

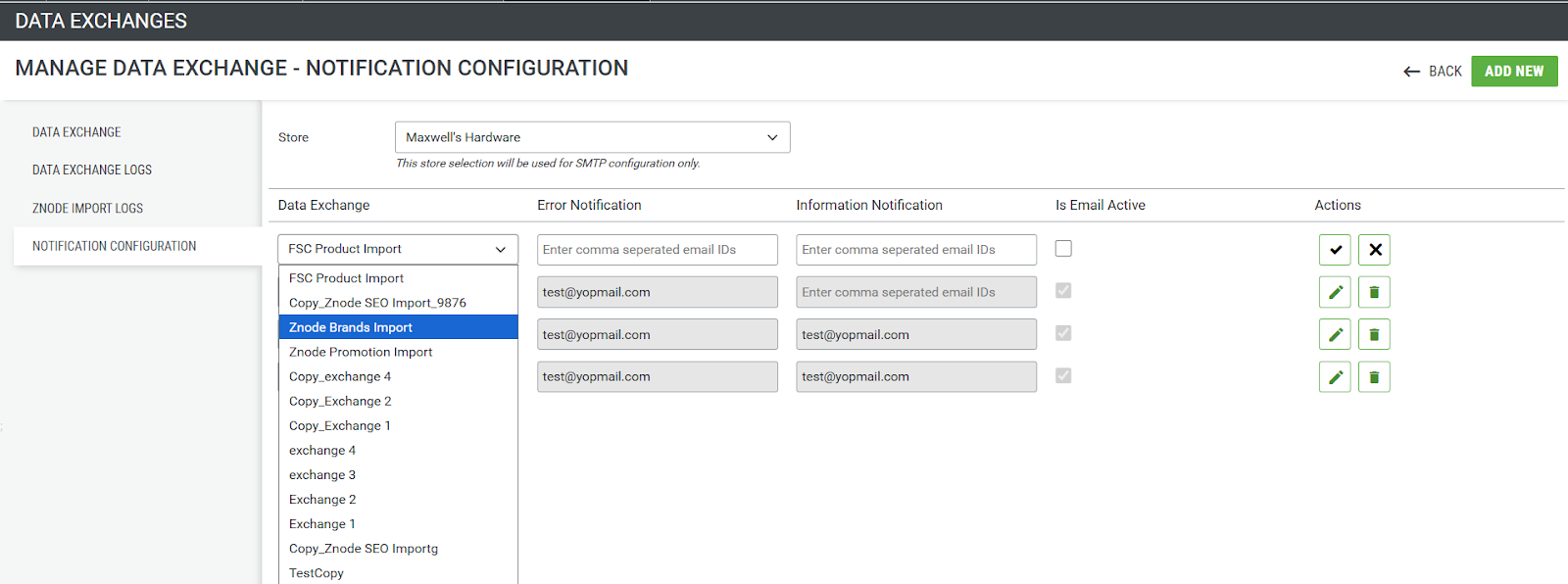

To add data exchanges for email notifications, click the ADD NEW button. This will display a list of data exchanges not yet configured for notifications. Select the desired data exchange, add the recipient emails, and click the tick mark to add it to the notification list.

Emails about errors and notifications that occur during the execution of data exchanges will be sent to the configured email addresses.

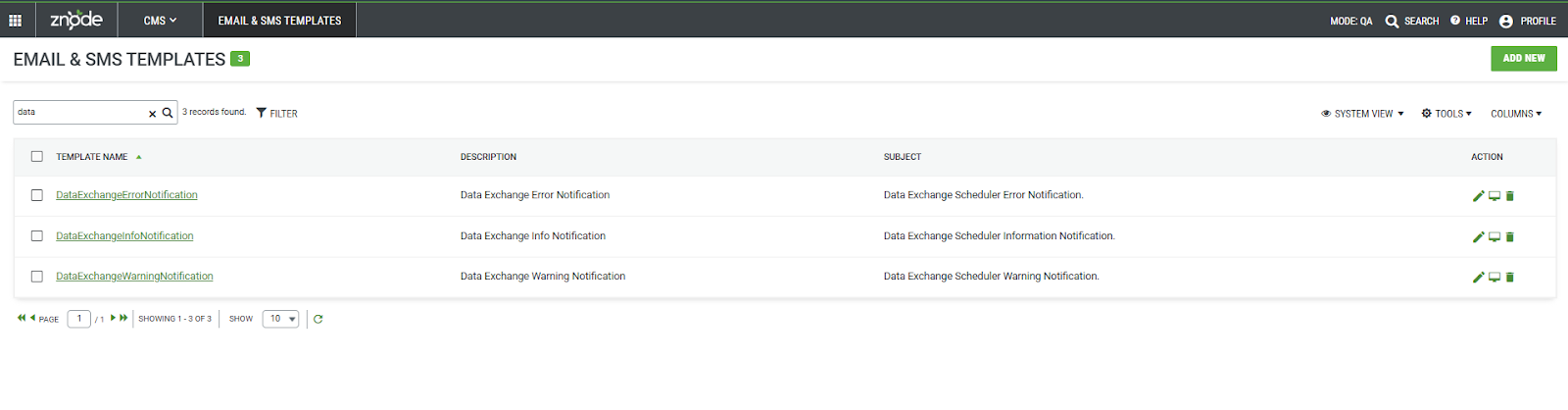

The email templates used while triggering the data exchanges notification emails will be configured in the Email & SMS Templates in Znode

Navigate to: CMS > Email & SMS Templates
